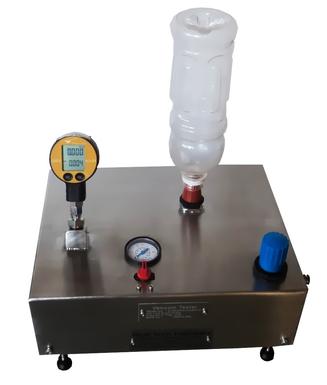

Vacuum Tester for Empty Bottle

Application :

Used for measuring vacuum strength of an empty container.
This factor is most critical while designing bottles for Hot Fill Application.
Factors like Weight and shape can be decided/ designed with respect to vacuum test.
Controlling thickness distribution.

Operation:
Vacuum tester operates on vacuum generated by compressed air.
Bottle is placed on a rubber cone and valve is operated.
Vacuum is created inside the bottle.
Fine adjustment is provided to achieve precise readings.
When the bottle collapses peak reading is recorded.
Digital Pressure gauge records output and same is noted.

Specifications:

  Operating Pressure : 0 – 2 bar
  Inlet Pressure : 0 – 7 bar
  Size : 250x200x100mm
  Inlet : 8 mm OD. PU Pipe
  Power supply : 230 Volts AC
  Container size :28mm –50mm neck Dia 200m other sizes available on request.
