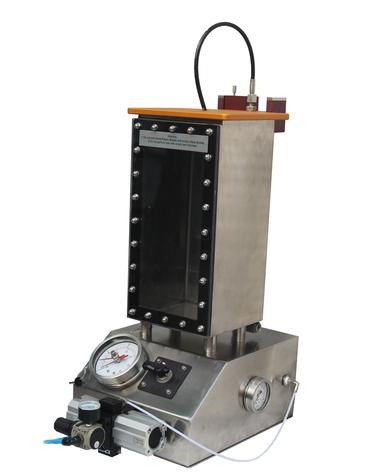

Bottle Closure Seal Tester / Secure Seal Tester

Standard Model

Application:
Thisl Tester is designed to check bottle and closure thread integrity
and Seal strength for Glass / PET Beverage Containers with Plastic/Metal Closures
Most Useful for Carbonated Drinks.
The equipment can handle max 3 ltrs Container with diff size

closures.Change Parts are available for different size closures.


Features :
Analog / Digital Output with PSI and Kg/cm2 Indication.
Indicationg Needle provided for holding peak peading in analog
Pressure Gauge.
Digital Pressure Gauge records peak reading in the memory.
Stainless Steel Construction.


Operation:

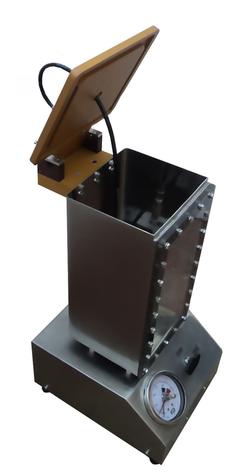

It consists of a Water chamber with polycarbonate viewing screen in which sealed assembly is immersed with
specific pressure . If bubbles are seen it indicates failure. A pressure gauge is provided with memory needle
which indicates peak pressure achieved during test.

Specifications:
Chamber Dimensions = 200x200x400mm
Inlet Pressure : 175 psi / 12 Bar(To be controlled externally)
Input Medium : Carbon Di Oxide / Air / Nitrogen
Inlet Conn Size : 1/4" BSP
Pressure Indicator : 0-300 PSI / 21 kg/cm2
Testing Chamber : Stainless steel with Poly carbonate Inspection.


Test Fixture

Bottle Closure Seal Tester / Secure Seal Tester

Inbuilt Pressure Booster Model

​​Bottle Closure Seal Tester / Secure Seal Tester
