Application :
For testing PET Bottle er for bursting strength.


Operation:

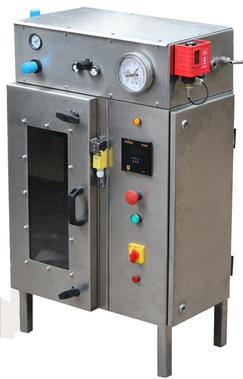

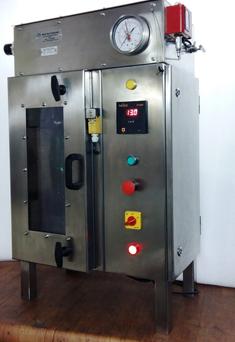

 It consists of Stainless Steel chamber with pneumatically operated bottle neck sealing device and quick locking bottle holder.
A Thick poly carbonate sheet is fixed on door which enables to view test with proper safety.


Operating Method:

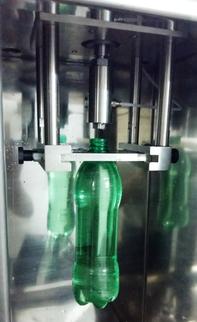

1.A bottle is filled with water and held in a fixture which has simple mechanical locking arrangement.
2.Timer is set as per requirement.
3.Test button is pressed.
4.Pressurising  nozzle is moved down on bottle neck by pneumatic cylinder.
5.Solenoid valve in pressure line also opens and bottle is pressurised.
6.After completion of time system stops automatically.
   Custom operating procedure can be provided on request.


Specifications:
Container Type  :     28mm PCO  PET Bottle
                              other sizes available on request.
                              Dia of bottle 200mm height 400mm / 3 ltrs.
                              Out put on analog Pressure gauge.
                              (digital available on request)
                              Robust design for reliabiity ensures long servicelife.
                              Requires 7 bar inlet air for operating system and 0 -15 bar / 215 PSI inlet Air.
                              0 -15 bar / 215 PSI inlet Air. for pressurising bottle
                              230 V AC Single phase supply for bursting test.

Optional :               Pressure booster is recommended to avoid high pressure inlet line or Gas cylinder.

                               Pressure booster can boost pressure 2 to 4 times of inlet pressure.
