BOTTLE BURST TESTER.

Application :
For testing plastic Container for bursting strength.


Operation:

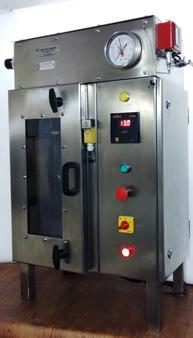

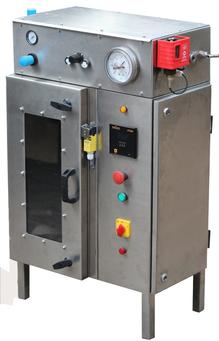

It is made of a Stainless Steel chamber which consists of simple bottle neck holding device..
A Thick poly carbonate sheet is fixed on door which enables to view test with proper safety.

Operating Method :
1.A bottle is filled with water and held in a fixture which has simple mechanical locking arrangement.
2.Timer is set as per requirement.
3.Test button is pressed.
4.Pressurising  nozzle is moved down on bottle neck by pneumatic cylinder.
5.Solenoid valve in pressure line also opens and bottle is pressurised.
6.After completion of time system stops automatically.
Custom operating procedure can be provided on request.
Specifications:
Container Type  : 28 mm 1881/ 1810  PET Bottle.
other sizes available on request.
Diameter of bottle 200 mm height 400 mm / 3 ltrs.

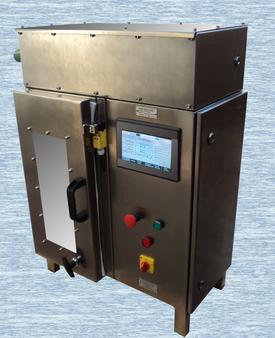

Out put on analog Pressure gauge.Digital  out put and HMI model is also available.
Robust design for reliability ensures long service life.
Requires 7 bar inlet air for operating system and 0 -12 bar / 175 PSI inlet Air.
0 -12 bar / 175 PSI inlet Air. for pressurising bottle
230 V AC Single phase supply for bursting test.


Optional - Pressure Booster to use equipment with standard compressed air supply 0 - 100 PSI.

No need to connect equipment to gas cylinders or high pressure lines.
