​​TOP  LOAD TESTER

Application:

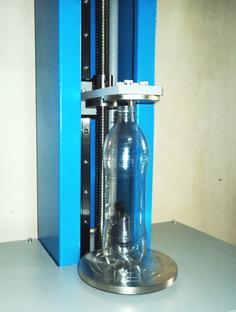

Top Load Tester is used for measuring vertical strength of bottle. Good strength avoids damage of bottles during,


  •  Stacking
  •  Transportation
  •  Storage
  •  Packing.


Specifications:

  • Maximum load capacity = 100 kg.
  • Least count =10 gm
  • Maximum Bottle diameter = 160mm Maximum height = 400mm
  • Top load speed = 0 to 10mm/ minute
  • Reversing speed = 10 mm/minute


Features:

  • Complete powder coated body.
  • Contact parts made from Stainless Steel
  • Branded reduction drive with motor.
  • Heavy duty load cell. Ball screw bush mechanism for smooth movement
  • Knob for  controlling speed
  • Air venting from container during test
  • Over travel protection for both directions Overload protection for drive
  • load cell Easy calibration method.
  • RS 232  out for computer connectivity.
  • Emergency safety switch.
  • Power Supply 230 VAC Single Phase.
