Multi tech engineers

Application:

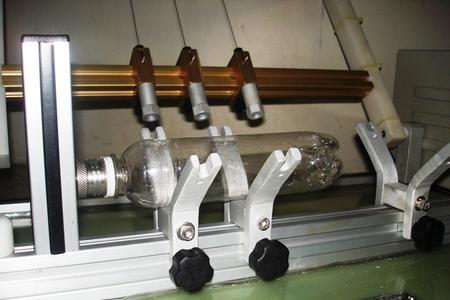

This equipment is used for cutting PET Bottles in to number of sections.

Features:

Equipment It is made from high quality extruded aluminium sections.


This is provided with variable power supply to achieve exact wire temperature.

No tools are required for orienting different sizes of bottles or for adjusting wire position.

Stainless steel scales are mounted on both sides of frame to adjust position of wire.

Sufficient spare wire is provided along with machine.

Specifications:

Input Voltage - 110  / 230 V AC Single Phase

Out Put Voltage - 0 - 12 V AC ( VARIABLE)

Maximum Bottle diameter - 150 mm

Maximum Bottle Height - 400 mm.

No. Of Wires - 3 nos.additional wires are provided.our paragraph here.

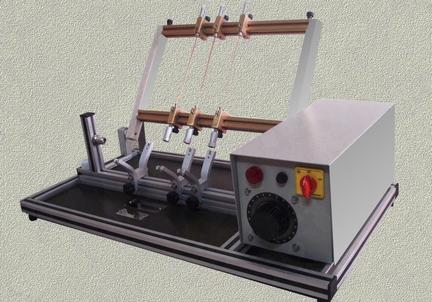

Hot Wire Bottle Cutter
